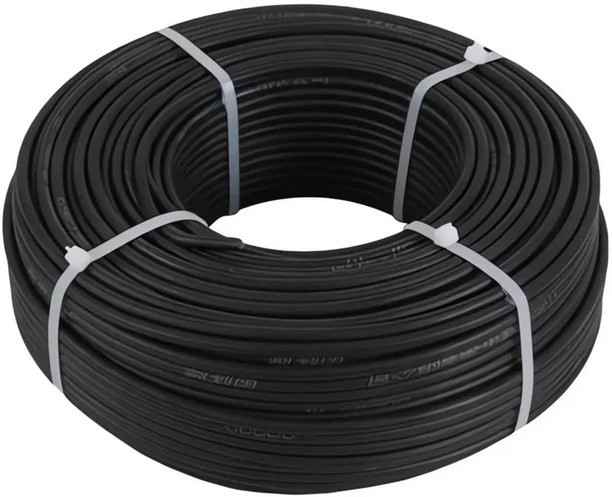

Solarix Single Core Solar Photovoltaic PV Black Cable

Description

Solarix Solar Photovoltaic PV Cable – 6 mm2 Cross Sectional Area Size, Flexible Aluminium Conductor, 70A Rated Current, Up to 1800VDC Max Permitted Voltage, Used as Photovoltaic Cable Between Solar Modules and AC/DC Inverters, Halogen-Free and Flame-Retardant Safety Jacket, -40°C to +90°C Operating and Storage Temperature, Black Color, No Warranty.

Product Overview
Solarix 6mm² single-core PV cable — flexible aluminium conductor designed for rooftop and ground-mounted photovoltaic systems, rated up to 1800 VDC and tested at 6.5 kV AC. Halogen-free, flame-retardant and high-temperature resistant for safe, long-term use (storage/operating -40°C to +90°C; min install -5°C). 70 A rated current, 0.6/1.0 kV AC (0.8/1.5 kV DC) working voltage, red sheath, 4× diameter bending radius for easy routing between modules and inverters.

Specifications
•Product Code: SOLSIRPV6MMBLKPM

•Description: Solarix Single Core Solar Photovoltaic PV Cable
•Inner Conductor: Flexible Aluminium Conductor
•Photovoltaic Power Cables, Halogen Free, Flame Retardant and High Temperature Resistance
•Used As Photovoltaic Cable Between Solar Modules And AC/DC Inverters
•Photovoltaic System With A Rated Value U0 = 1.5k VDC
•Maximum Permitted Voltage U0 =1800VDC
•Test Voltage: 6.5 kV AC 50 Hz
•Cross Sectional Area: 6mm²
•Rated Current: 70 A
•Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
•Max Voltage: 1.2kV AC (1.8kV DC)
•Bending Radius: 4 x Diameter Of Cable
•Storage/Operating Temperature: -40°C to +90°C*
•Minimum Installation Temperature: -5°C
•Colour: Black
